Duquesne University

Mary Pappert School of Music

Teaching Studio Organ

1967 publicity photo by Moller

press to zoom
1967 publicity photo by Moller
1967 publicity photo by Moller
press to zoom

Old layout. The boards in at the front of the instrument were a stop-gap measure to shield listeners against the mixtures. The Positiv was located up top, and the Great down low.

press to zoom

The console as originally designed. 19 stops, 4 pistons with tripper combination system.

press to zoom

Pipe removal begins

press to zoom

The most hated stop on the organ for 45 years, the Positiv Cymbel III, is gone for good.

press to zoom

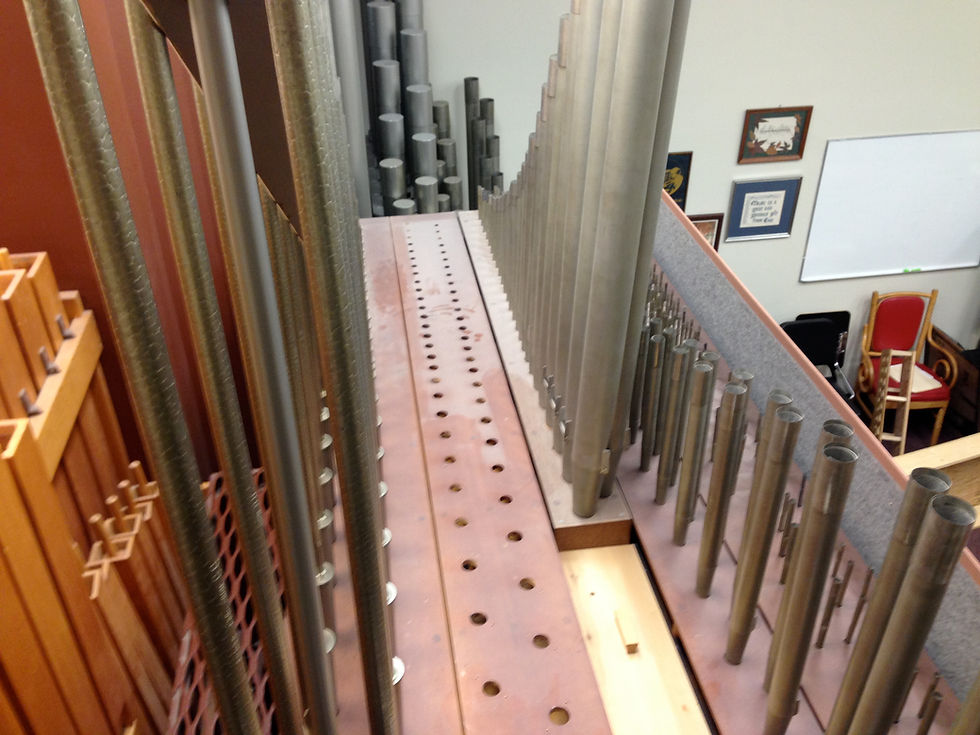

Positiv pipework removed. Note the different racking for the former 4' Prestant when it was moved up an octave to convert it to an 8' stop.

press to zoom

Pneumatic switches over the low octave of the former 4' Prestant actions. These contacts ran to an offset chest with an octave of poorly recycled Violin Diapason pipes. While inventive, over time the actions became sluggish and unreliable.

press to zoom

Gutting the old mechanism.

press to zoom

Cutting raw poplar lumber for new wind chests.

press to zoom

Table boards for two new offset chests.

press to zoom

Planing down the new Positiv 2' Principal rackboard.
